Hardware Connector Products
XT90 Drone Battery Connector
XT90 fast charging plug

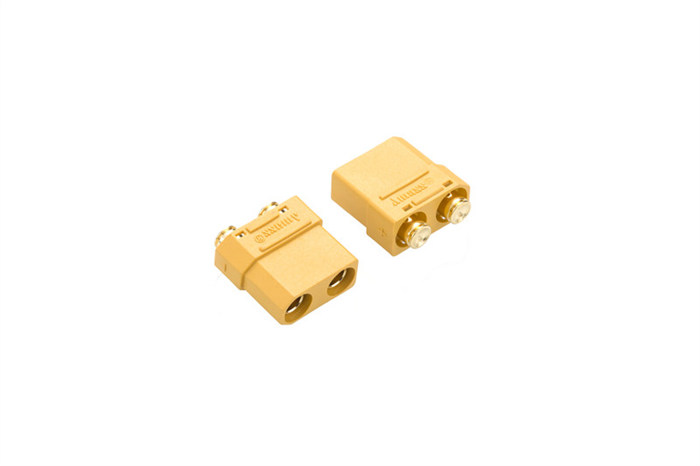

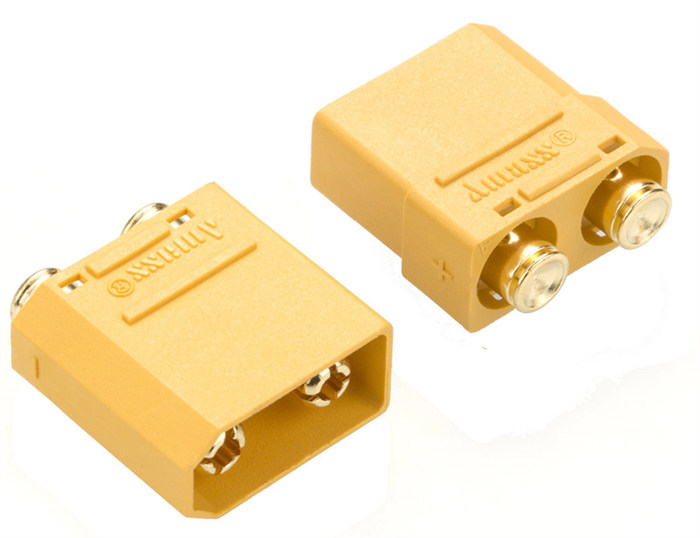

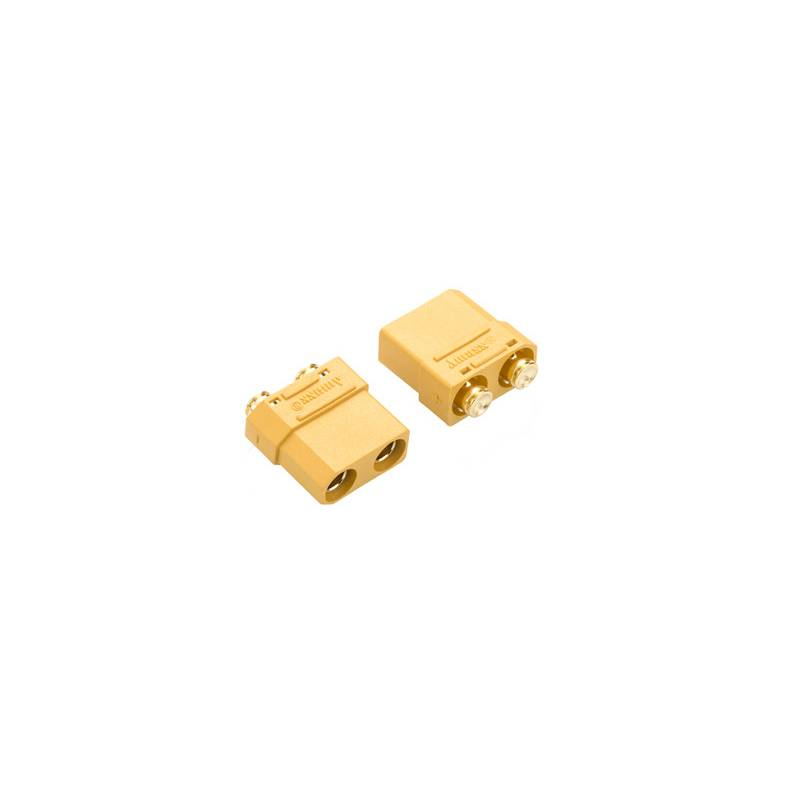

XT90PB-F Drone Fast Charging Battery Connector

The plug body is made of PA engineering material, and the PCB end plug can be plugged into the XT90H-M wire end. The hardware is made of pure gold-plated copper, conforms to UL 94 V0 standard, CE/UL certified, rated voltage DC 500V, rated current 45A, operating temperature -20 ℃-120℃, instantaneous current 90A.

  • Item No :

    XT90PB-F
  • Payment :

    Advance Payment
  • Product Origin :

    China
  • Color :

    3 Color
  • Shipping Port :

    According To Customers Wishes
  • Lead Time :

    15-20 days
  • Price :

    FOB Price

XT90PB-F Drone Fast Charging Battery Connector

Compared to traditional aircraft, drone plugs are generally more energy-efficient and reduce environmental impact, especially in monitoring and surveying, helping to reduce disruption to ecosystems.



Drone plugs can collect various types of data in real time and transmit it to the operation center through the network, allowing decision makers to make decisions faster. This is very useful in emergency response and monitoring tasks.



Application

Helping model aircraft drones, garden tools, smart robots, smart scooters, electric vehicles, energy storage equipment, smart home appliances and other fields Portable energy storage Mobile energy storage Lithium batteries







Specification:

Item No. XT90PB-F Contact Resistance 0.3mQ
Color 3 Color Rated voltage DC 500V
Metal Material Brass Gold Plated Rated Current 45A
Plastic Material PA Instantaneous Current 90A
FR Level UL94 V0 Use Times 1000times
Recommend USE Battery Cable Spec. PCB
Certification CE/UL Temperature -20°C To 120°C



Why Choose Us?
Shenzhen Smart Connection Technology Co., Ltd. was established in 2008, integrating R&D, production, processing and sales of wiring harnesses for various electrical products. We have a professional scientific and technological research and development team, advanced production and inspection equipment, modern enterprise management, and strict quality assurance system. The company's products have passed UL safety certification and are widely used in various electrical products such as portable energy storage power supplies, household energy storage power supplies, industrial and commercial energy storage power supplies, lithium batteries, and industrial control boxes for sweeping robots.

After-sale Service

  • Technical support online service provided.
  • OEM available.
  • Our product with test report and certification
  • Our product with 3 year warranty.


Packing & Delivery:





FAQ:

1. Does it support the customization of wiring harness?

 Yes, customized color and length options are available upon request to meet the needs of different applications.



 2. Does it comply with relevant safety and certification standards?

 Yes, our wiring harnesses comply with industry standards, such as UL, CE, etc., and have passed strict safety certification.



3. How can I get more information on the technical details and customization options for these harnesses?

You can contact our sales team for more detailed information on technical details, customization options and quotations.
