Wholesale XT90H-M Connector Plug
Drone charging plug
Agricultural Drone connector

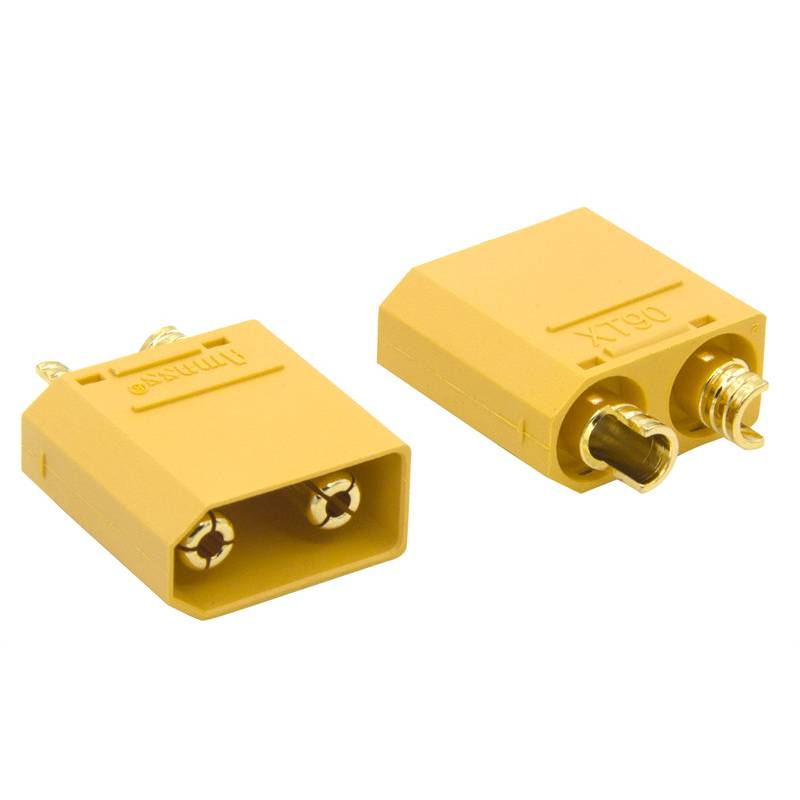

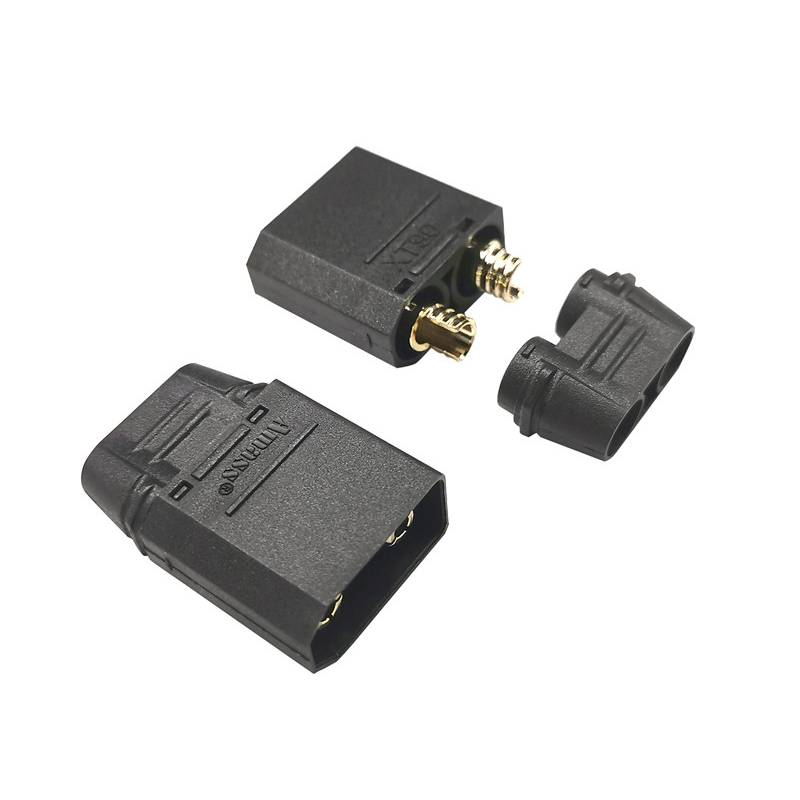

XT90H-M High Current Male and Female Lithium Battery Connector Bullet Plug

The plug body is made of PA engineering materials, and the wire end plug can be used with XT90PB-M XT90PW-M in the air. The hardware is made of pure gold-plated copper and complies with the UL 94 V0 standard. It is CE/UL certified. The rated voltage is DC 500V and the rated current is 45A. Temperature -20℃-120℃, instantaneous current 90A, recommended wire: 14AWG-8AWG

  • Item No :

    XT90H-M
  • Payment :

    Advance Payment
  • Product Origin :

    China
  • Color :

    3 Color
  • Shipping Port :

    According To Customers Wishes
  • Lead Time :

    15-20 days
  • Price :

    FOB Price

XT90H-M High Current Male and Female Lithium Battery Connector Bullet Plug

Drone plugs are generally cheaper than traditional manned aircraft or helicopters because they do not require a pilot or crew. In addition, drones can fly for long periods of time, reducing fuel and personnel costs.



Application

Helping model aircraft drones, garden tools, smart robots, smart scooters, electric vehicles, energy storage equipment, smart home appliances and other fields Portable energy storage Mobile energy storage Lithium batteries





Specification:

Item No. XT90H-M Contact Resistance 0.3mQ
Color 2/3 Color Rated voltage DC 500V
Metal Material Brass Gold Plated Rated Current 45A
Plastic Material PA Instantaneous Current 90A
FR Level UL94 V0 Use Times 1000times
Recommend USE Controller/Charger Cable Spec. 10AWG
Certification --- Temperature -20°C To 120°C



Why Choose Us?
Shenzhen Smart Connection Technology Co., Ltd. was established in 2008, integrating R&D, production, processing and sales of wiring harnesses for various electrical products. We have a professional scientific and technological research and development team, advanced production and inspection equipment, modern enterprise management, and strict quality assurance system. The company's products have passed UL safety certification and are widely used in various electrical products such as portable energy storage power supplies, household energy storage power supplies, industrial and commercial energy storage power supplies, lithium batteries, and industrial control boxes for sweeping robots.

After-sale Service

  • Technical support online service provided.
  • OEM available.
  • Our product with test report and certification
  • Our product with 3 year warranty.


Packing & Delivery:





FAQ:

1. Does it support the customization of wiring harness?

 Yes, customized color and length options are available upon request to meet the needs of different applications.



 2. Does it comply with relevant safety and certification standards?

 Yes, our wiring harnesses comply with industry standards, such as UL, CE, etc., and have passed strict safety certification.



3. How can I get more information on the technical details and customization options for these harnesses?

You can contact our sales team for more detailed information on technical details, customization options and quotations.
