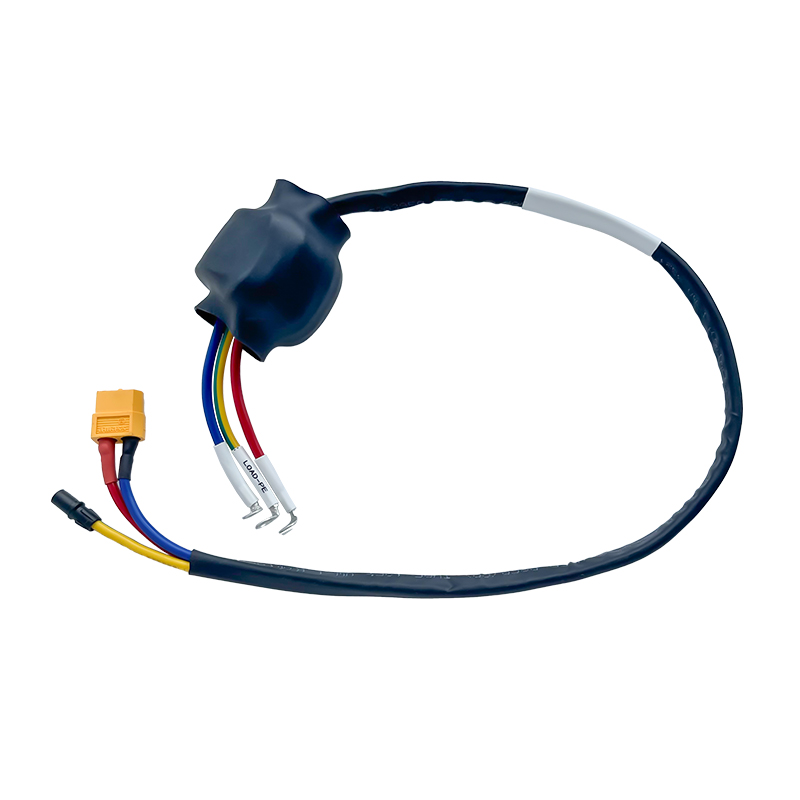

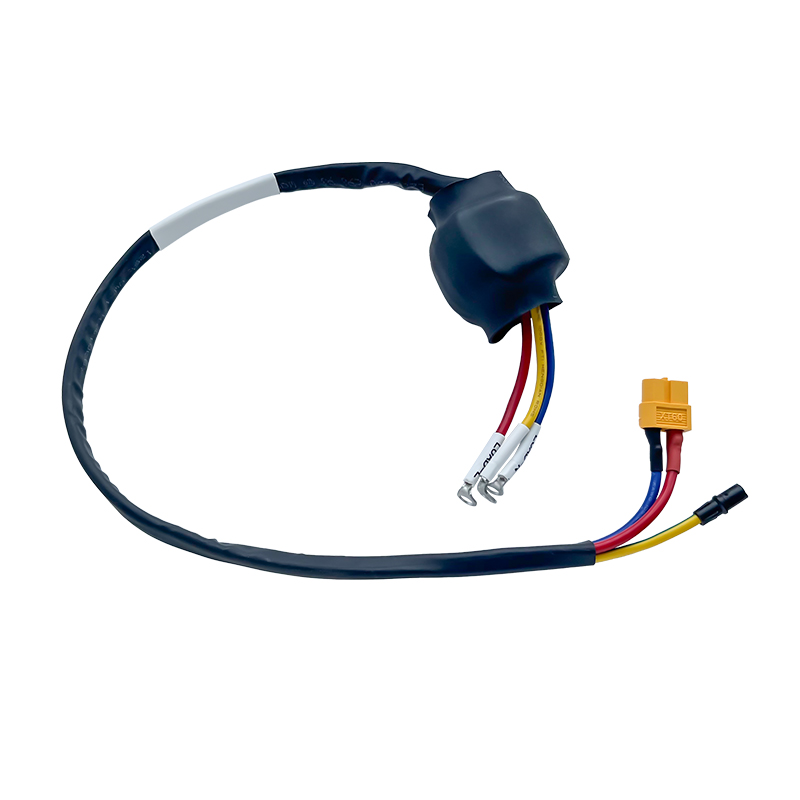

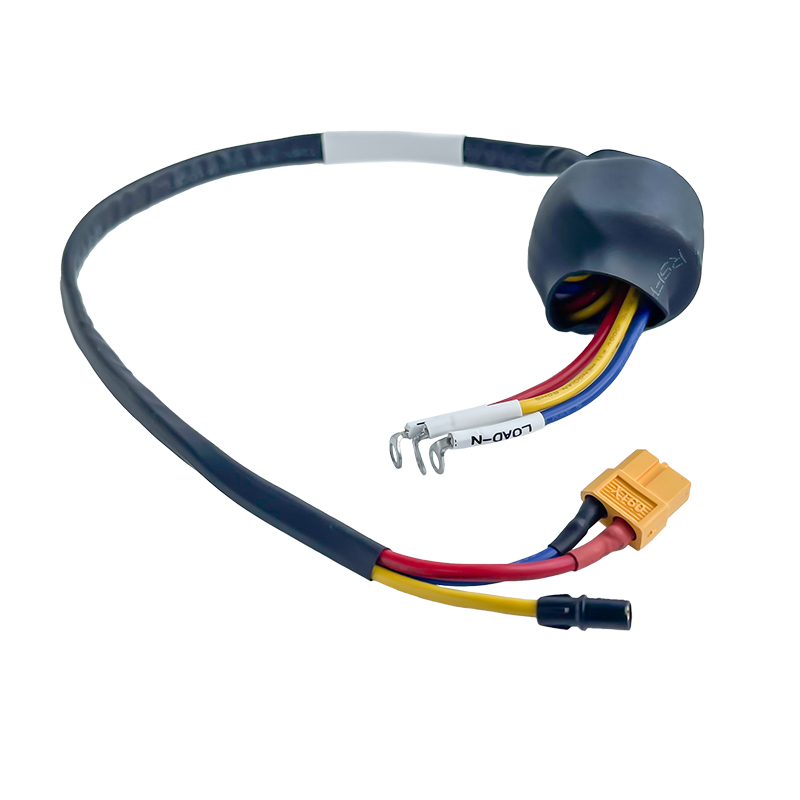

UL10269 AC Power Cable with XT60 Connector for New Energy Wiring Harness

This AC Power Cable (New Energy Wiring Harness) is engineered for efficient and stable power transmission in modern new energy applications.

The cable adopts UL10269 16AWG high-quality copper conductors, providing excellent current-carrying capacity and low DC resistance. The optimized conductor structure and insulation materials ensure reliable performance even in demanding electrical environments.

One end is terminated with AMASS XT60-F and SH3.5-F connectors, while the other end is equipped with a TLC RNBS2-4-90D terminal, forming a robust and secure electrical connection.

Additionally, the three-core wire is wound around a ferrite core (4 turns) to effectively suppress electromagnetic interference (EMI), improving signal and power transmission stability.

The cable assembly is finished with heat shrink tubing for enhanced mechanical protection and insulation safety. Length and configuration can be fully customized to support OEM and system integration needs.

Specifications

Key Features:

Low Impedance & High Efficiency

By utilizing high-purity tinned copper conductors and precision manufacturing processes, this cable achieves exceptionally low DC resistance, minimizing energy loss during power transmission.

Optimized Current-Carrying Capacity
Scientific wire gauge selection combined with optimized thermal design ensures stable performance under continuous high-current operation, with controlled temperature rise and no performance degradation.

Enhanced EMI Suppression
The integrated ferrite core effectively reduces electromagnetic interference, improving system stability and operational reliability in complex electrical environments.

High Durability & Safety
UL10269-rated insulation and heat shrink protection provide excellent heat resistance, mechanical strength, and long-term durability for demanding new energy applications.

Applications:

• New Energy Systems
Suitable for power transmission in energy storage systems, inverters, and new energy power equipment.


• Energy Storage Systems (ESS)
Ensures reliable and stable power connections in industrial and commercial energy storage installations.


• Power Management Units
Ideal for power distribution modules requiring high-current AC cable assemblies with secure connector interfaces.


• OEM & System Integration
Widely used in OEM manufacturing, system integration projects, and customized wiring harness solutions for new energy industries.

Why Choose Us?
Shenzhen Smart Connection Technology Co., Ltd. was established in 2008, integrating R&D, production, processing and sales of wiring harnesses for various electrical products. We have a professional scientific and technological research and development team, advanced production and inspection equipment, modern enterprise management, and strict quality assurance system. The company's products have passed UL safety certification and are widely used in various electrical products such as portable energy storage power supplies, household energy storage power supplies, industrial and commercial energy storage power supplies, lithium batteries, and industrial control boxes for sweeping robots.

After-sale Service:

• Technical support online service provided.
• OEM available.
• Our product with test report and certification
• Our product with 3 year warranty.

Packing & Delivery:

FAQ:

Q1: Is this AC power cable compliant with international safety standards?

A: Yes. This AC power cable is manufactured using UL10269 certified 16AWG wire, which is widely recognized for internal wiring in electronic equipment and new energy applications. The cable meets safety and performance requirements for power transmission in energy storage and power management systems.

Q2: Can the cable length and configuration be customized for OEM projects?

A: Absolutely. While the standard length is L = 50 + 380 + 70 mm, we offer full customization services. Cable length, wire colors, connector types, and branch configurations can all be tailored to match your specific system layout and OEM requirements.

Q3: How does this cable perform under continuous high-current operation?

A: The cable uses high-purity tinned copper conductors with optimized 16AWG sizing, resulting in low DC resistance and efficient current transmission. Combined with proper insulation and thermal design, it ensures a controllable temperature rise and stable performance during sustained high-current operation.

Q4: What connectors are used in this AC power cable assembly?

A: One end is terminated with AMASS XT60-F and SH3.5-F connectors, while the other end uses a TLC RNBS2-4-90D terminal. These connectors are selected for their secure locking, high current capability, and reliability in new energy applications. Alternative connector brands are available upon request.

Q5: What is the purpose of the ferrite core in this cable?

A: The integrated ferrite core (YZN-UT23×33×20), with the cable wound four turns, helps suppress electromagnetic interference (EMI). This improves power stability and reduces electrical noise, especially in environments with sensitive electronic components.
