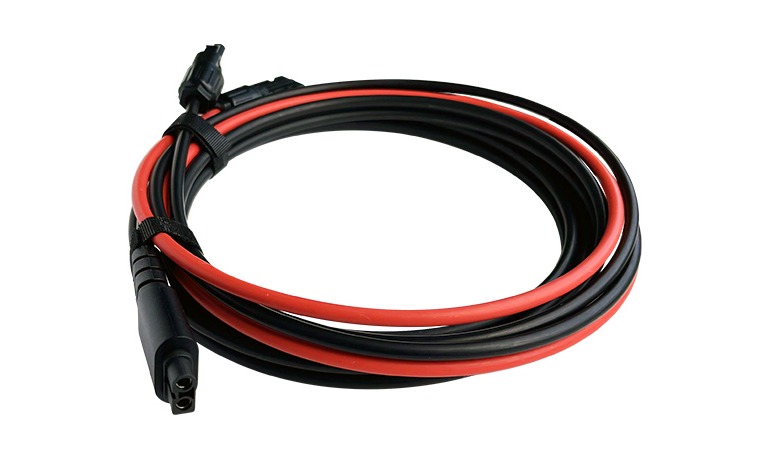

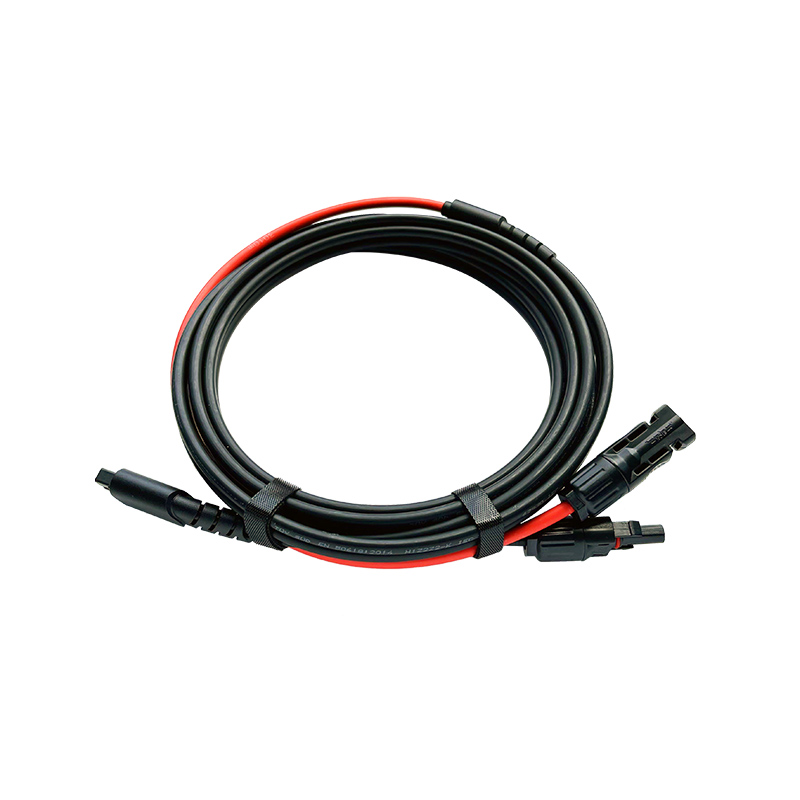

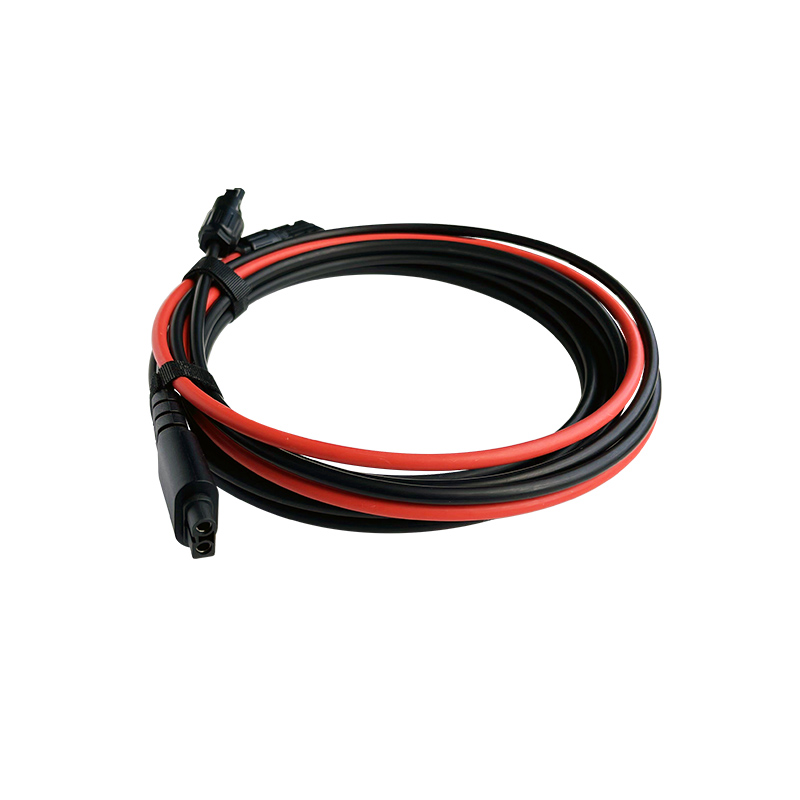

Custom Solar Photovoltaic Panel Adaptor Cable

Solar Extension Cable

The solar cable is used to connect solar panels to a variety of power systems or storage devices. This flexibility is especially useful when integrating solar into different setups or configurations. Wire length can be customized as needed.

This solar panel adapter cable is designed to withstand harsh environmental conditions and has an operating temperature range of -40°C to +90°C. High temperature resistance up to +120°C ensures reliable operation of the cables even in hot climates. Rated up to 1500V DC and 50A, suitable for a variety of solar applications including residential and commercial installations. The length of the wire can be customized according to needs

Specification:

HIZ2Z2-K 2*4MM square double parallel to 1*4MM square

Rated voltage: 1500V DC

Rated current: 50A

Working temperature: -40~+90℃

Maximum conductor temperature: +120℃ Solar photovoltaic line

Physical properties: Halogen-free, ozone-resistant, oil-resistant, UV-resistant

MC4 solar photovoltaic connector: 1000V 30A /1500V 40A IP67/IP68

Ambient temperature range: -40~+90℃; XT60U-F(Z), Amass plug, 30A 600V DC -20~+120℃

Length: 0.5M-5M

Why Choose Us?
Shenzhen Smart Connection Technology Co., Ltd. was established in 2008, integrating R&D, production, processing and sales of wiring harnesses for various electrical products. We have a professional scientific and technological research and development team, advanced production and inspection equipment, modern enterprise management, and strict quality assurance system. The company's products have passed UL safety certification and are widely used in various electrical products such as portable energy storage power supplies, household energy storage power supplies, industrial and commercial energy storage power supplies, lithium batteries, and industrial control boxes for sweeping robots.

After-sale Service

• Technical support online service provided.
• OEM available.
• Our product with test report and certification
• Our product with 3 year warranty.

Packing & Delivery:

FAQ:

1. Does it support the customization of wiring harness?

 Yes, customized color and length options are available upon request to meet the needs of different applications.

 2. Does it comply with relevant safety and certification standards?

 Yes, our wiring harnesses comply with industry standards, such as UL, CE, etc., and have passed strict safety certification.

3. How can I get more information on the technical details and customization options for these harnesses?

You can contact our sales team for more detailed information on technical details, customization options and quotations.
