The New Energy Wiring Harness is designed to deliver reliable electrical connections for modern energy systems, including EV charging piles, control power supplies, and home energy storage solutions. Built with high-temperature-resistant and flame-retardant materials, this harness ensures safe, stable, and efficient transmission of current in demanding power environments.
Whether for residential energy storage systems or industrial charging applications, this wiring assembly provides customizable length and connector options to meet different installation requirements.
Item No :
3239#22Payment :
Advance PaymentProduct Origin :
ChinaColor :
blackShipping Port :
According To Customers WishesLead Time :
15-20 daysPrice :
FOB PriceNew Energy Wiring Harness for Control Power Supply and Home Energy Storage

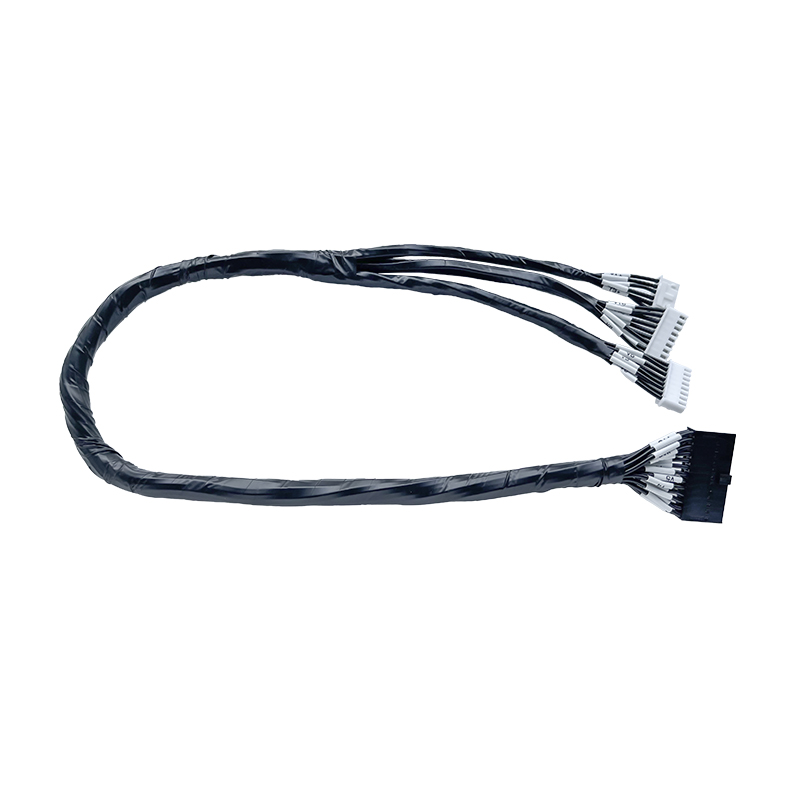

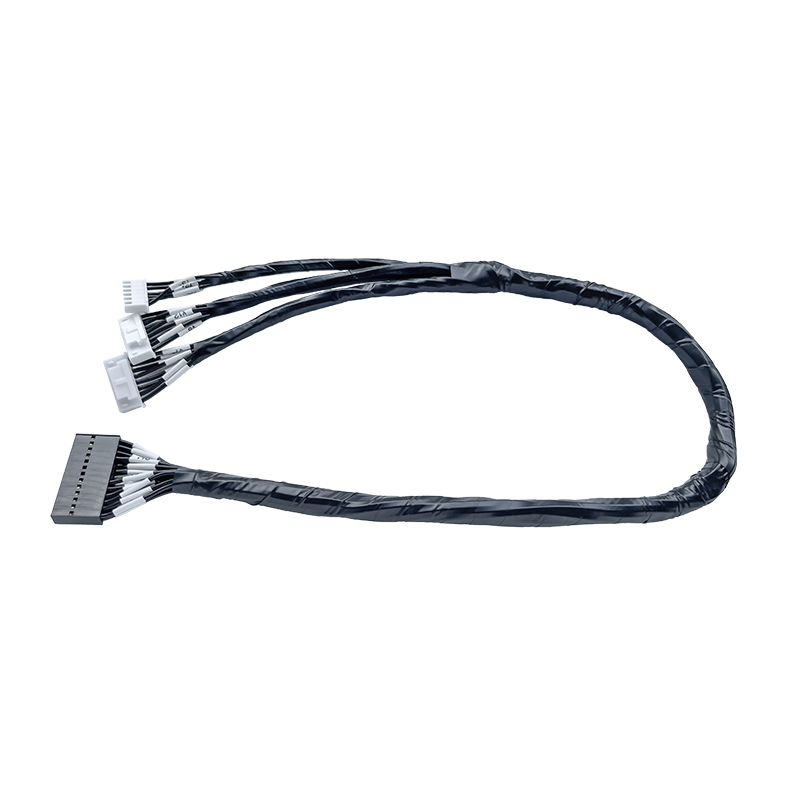

The Collection Wiring Harness uses 3239#22 black wire, with a standard length of 600 mm. One end is connected to A2547H-2×8P, while the other branches connect to XHB-6P + XHB-9P + XHB-8P connectors.
Each harness is wrapped with durable PVC insulation tape for enhanced protection against abrasion, heat, and environmental impact. Custom configurations and cable lengths are available to match your system specifications.
This wiring solution is especially suitable for new energy systems that require precision, signal stability, and high-current endurance in compact installations.
Specifications
| Parameter Category | Specification Item | Details |
| General Specifications | Product Name | New Energy Wiring Harness / Collection Harness |
| Model Number | 3239#22 Black Wire (Customizable) | |
| Primary Applications | Charging pile, Control power supply, Home energy storage | |
| Input Specifications | Length | 600 mm (Customizable) |
| Output Specifications | Terminal Type | SMR-02V |
| Connector (End A) | A2547H-2×8P | |
| Connector (End B) | XHB-6P + XHB-9P + XHB-8P | |
| Wrapping Material | PVC Tape | 300V |
| Cable Specifications | Rated Voltage | UL1007 |
| Rated Temperature | 105 °C | |
| Customization | Customization | Connector type, length, and material options |
Key Features:
Applications:
Why Choose Us?
Shenzhen Smart Connection Technology Co., Ltd. was established in 2008, integrating R&D, production, processing and sales of wiring harnesses for various electrical products. We have a professional scientific and technological research and development team, advanced production and inspection equipment, modern enterprise management, and strict quality assurance system. The company's products have passed UL safety certification and are widely used in various electrical products such as portable energy storage power supplies, household energy storage power supplies, industrial and commercial energy storage power supplies, lithium batteries, and industrial control boxes for sweeping robots.
After-sale Service:
Packing & Delivery:
 |
 |
FAQ:
1. Does it support the customization of wiring harness?
Yes, customized color and length options are available upon request to meet the needs of different applications.
2. Does it comply with relevant safety and certification standards?
Yes, our wiring harnesses comply with industry standards, such as UL, CE, etc., and have passed strict safety certification.
3. How can I get more information on the technical details and customization options for these harnesses?
You can contact our sales team for more detailed information on technical details, customization options and quotations.
