Custom UL1015 22AWG Twisted Pair Power and Signal Wire Harness

Custom UL1015 22AWG Twisted Pair Power and Signal Wire Harness

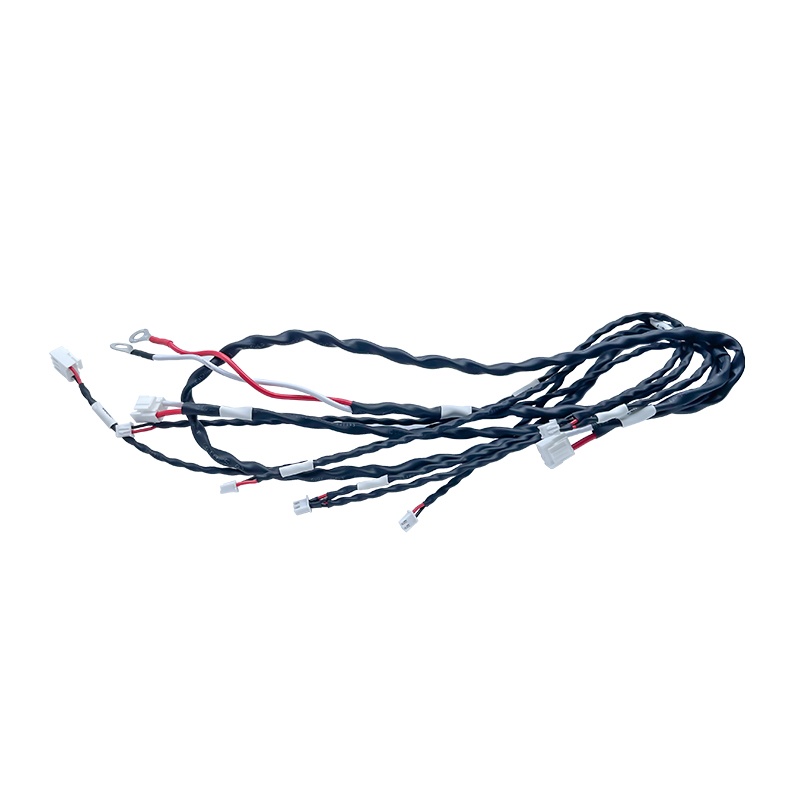

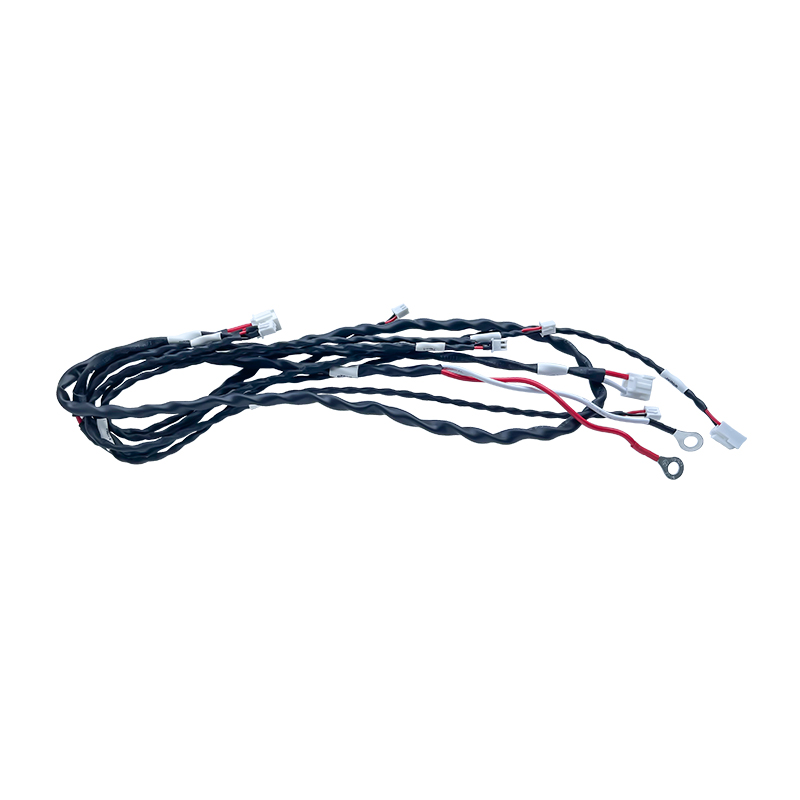

Featuring a UL1015 #22 AWG red and white twisted pair design, it comes pre-assembled with premium VH3.96-4P connectors and RNB1.25-6 ring terminals. Built with high-purity tinned copper, it delivers exceptional energy efficiency and thermal stability. Whether you are building EV charging stations, drones, or telecom setups, this harness offers optimized current-carrying capacity. Custom lengths are readily available to meet your precise engineering requirements.


Specifications

Key Features:

• Low Impedance & High Efficiency: Manufactured with high-purity tinned copper conductors using precision craftsmanship. This advanced design significantly lowers DC resistance, minimizing energy loss during transmission and ensuring highly efficient power delivery for sensitive electronics.
• Optimized Current-Carrying Capacity: Engineered with scientific wire gauge selection and excellent heat dissipation properties. This guarantees that the temperature rise remains strictly controlled even under continuous large-current operations, ensuring long-term stability with zero performance degradation.

• Durable & Safe Construction: Utilizing UL1015 standard insulation, the harness is highly resistant to heat, abrasion, and environmental wear, making it safe for complex internal wiring.

• Fully Customizable: While the standard lengths are 855mm and 815mm, we offer complete customization services to tailor the wire length perfectly to your specific equipment layout and routing needs.

Applications:

• New Energy Equipment: Reliable wiring for solar inverters, energy storage systems, and battery management.
• EV Charging Stations (Charging Piles): Handles continuous power loads efficiently with optimized thermal control.
• Power Control Boxes: Ensures secure, organized, and efficient internal wiring for complex electrical panels.
• Electronic Communication Equipment: Maintains high signal integrity for telecommunication devices and routers.
• Drones (UAVs): Offers a lightweight, low-resistance solution for drone power distribution and control signals.

Why Choose Us?
Shenzhen Smart Connection Technology Co., Ltd. was established in 2008, integrating R&D, production, processing and sales of wiring harnesses for various electrical products. We have a professional scientific and technological research and development team, advanced production and inspection equipment, modern enterprise management, and strict quality assurance system. The company's products have passed UL safety certification and are widely used in various electrical products such as portable energy storage power supplies, household energy storage power supplies, industrial and commercial energy storage power supplies, lithium batteries, and industrial control boxes for sweeping robots.

After-sale Service:

• Technical support online service provided.
• OEM available.
• Our product with test report and certification
• Our product with 3 year warranty.

Packing & Delivery:

FAQ:

1. Does it support the customization of wiring harness?

 Yes, customized color and length options are available upon request to meet the needs of different applications.

 2. Does it comply with relevant safety and certification standards?

 Yes, our wiring harnesses comply with industry standards, such as UL, CE, etc., and have passed strict safety certification.

3. How can I get more information on the technical details and customization options for these harnesses?

You can contact our sales team for more detailed information on technical details, customization options and quotations.
