CAT5e Shielded External Communication Parallel Cable for New Energy Systems

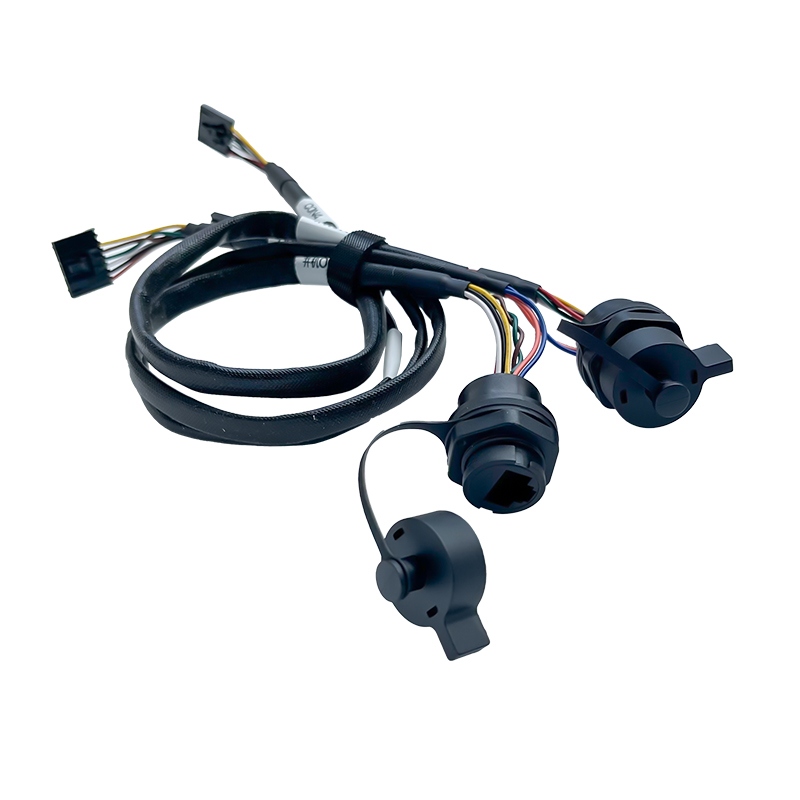

This external communication parallel cable is designed to solve signal interference and environmental challenges in new energy applications. The core utilizes CAT.5E 4P*26AWG shielded wire with high-purity tinned copper, which significantly reduces DC resistance and optimizes current carrying capacity. By minimizing energy loss during transmission, it ensures high-efficiency communication between parallel units.

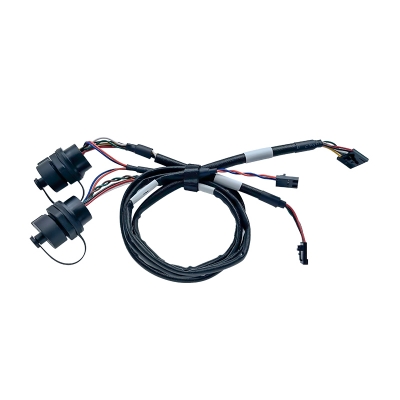

The harness is terminated with precision WCON industrial connectors on one end and an RUV Connet RJ45 M20.5 waterproof interface on the other, featuring a secure screw-locking mechanism and dust cap. This design guarantees consistent performance and effective heat dissipation, even under continuous operation.

Key Features & Benefits

• High-Fidelity Transmission: Features high-purity tinned copper conductors that achieve ultra-low DC resistance, maximizing signal integrity and reducing energy loss during data transfer.
• Robust EMI Protection: The CAT.5E shielded design effectively blocks electromagnetic interference, essential for stable communication in high-voltage inverter and battery environments.
• IP67 Waterproof Reliability: Equipped with RUV Connet RJ45 M20.5 connectors and protective dust caps, ensuring a watertight seal for outdoor or humid industrial conditions.
• Optimized Thermal Performance: Scientific wire gauge selection and precision crimping control temperature rise, ensuring performance does not degrade over time.
• Fully Customizable: Available in custom lengths (standard L=530/250/70mm) and pinout configurations to match specific BMS or inverter interface definitions.

Cable Structure & Electrical Specs

• Cable Standard: CAT.5E, 4 Pairs × 26 AWG.
• Shielding: STP (Shielded Twisted Pair) to negate EMI/RFI.
• Conductor: High-Purity Tinned Copper (Optimized for low impedance).
• Jacket: Industrial-grade material resistant to UV, weathering, and abrasion.
• Performance: Designed for continuous load with strictly controlled signal loss.

Connector Configuration

End A: Device Internal Side (To PCB/BMS)

• Connectors: WCON WF2012-1H03T02W + WF2542-H07B01 + WF2542-H08B01
• Function: Precision board-to-wire connection for internal module integration.

End B: Panel/External Side (To Network/Parallel Unit)

• Connector: RUV Connet RJ45 M20.5
• Type: Panel-mount receptacle with Waterproof Dust Cap.
• Feature: Secure screw-locking design to prevent vibration disconnection.

(Note: Connector combinations can be customized to match specific project BOMs.)

Typical Applications

• Energy Storage Systems (ESS): Parallel communication between battery packs.
• Solar Inverters: Data linking for PV power conversion systems (PCS).
• EV Infrastructure: Charging pile internal networking.
• Industrial Automation: Outdoor control cabinets requiring IP67 protection.


Specifications

Why Choose Us?
Shenzhen Smart Connection Technology Co., Ltd. was established in 2008, integrating R&D, production, processing and sales of wiring harnesses for various electrical products. We have a professional scientific and technological research and development team, advanced production and inspection equipment, modern enterprise management, and strict quality assurance system. The company's products have passed UL safety certification and are widely used in various electrical products such as portable energy storage power supplies, household energy storage power supplies, industrial and commercial energy storage power supplies, lithium batteries, and industrial control boxes for sweeping robots.

After-sale Service:

• Technical support online service provided.
• OEM available.
• Our product with test report and certification
• Our product with 3 year warranty.
