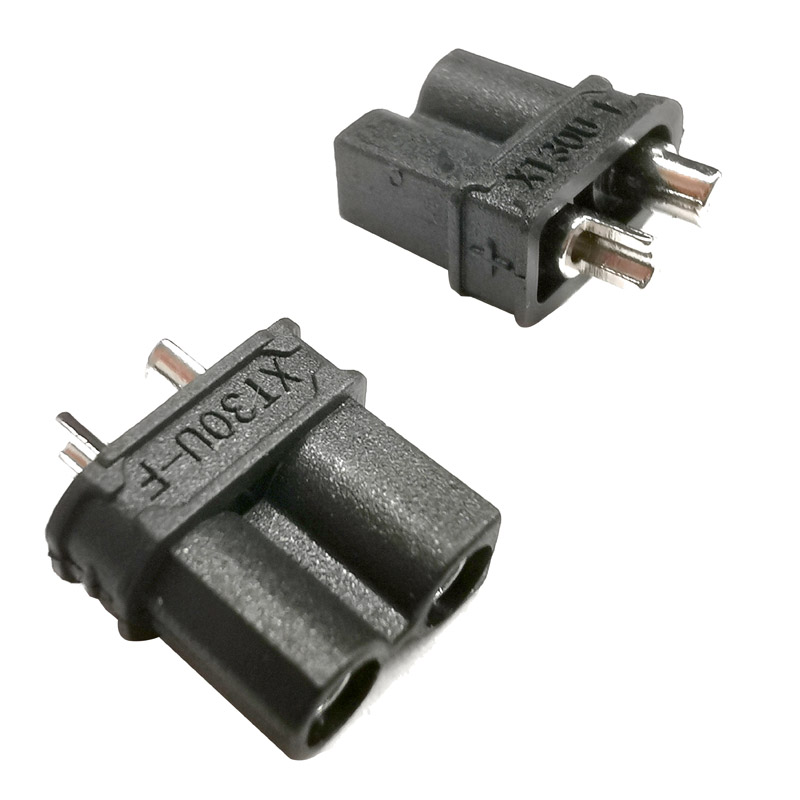

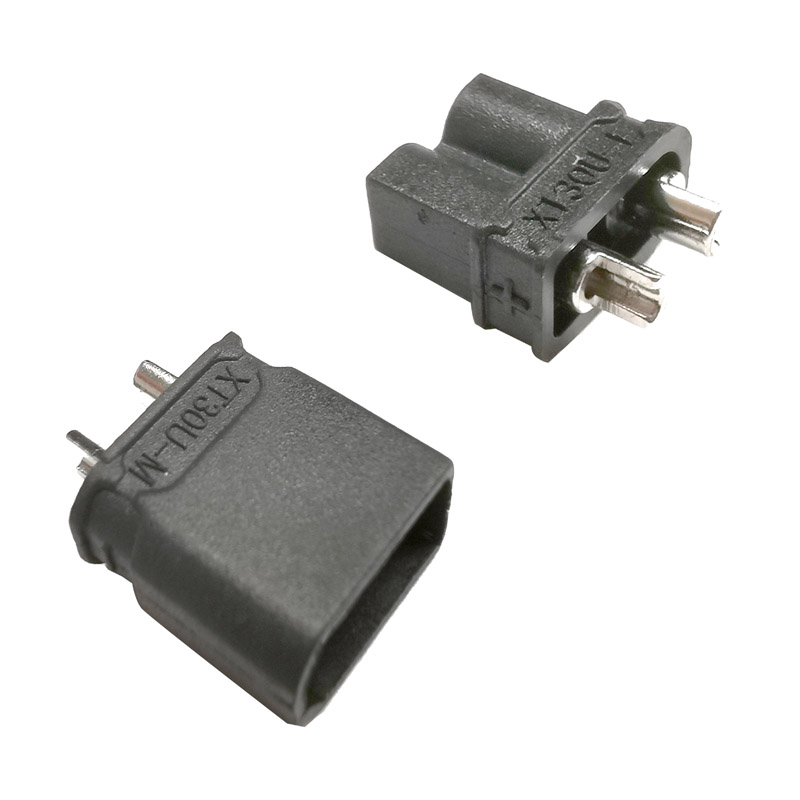

XT30U Male Female Battery Plugs Black with Heat Shrink for RC Lipo Battery

XT30U Male Female Battery Plugs Black with Heat Shrink for RC Lipo Battery

These are not cheap copies of XT30 plugs. These nylon XT30U connectors plugs black can handle over 30A for extended periods of time due to their better contact surface area, and are also less likely to warp or melt than replica non-nylon XT30 plugs.

The XT30 connectors plug is made from high-temperature nylon and a gold-plated spring connector, both contained in the same injection mold when the connector is formed. The XT30 ensures a strong, high-current connection, perfect for Mini RC use !

Features:

• Ergonomically designed and easy to grip
• Protected to avoid shorting and reverse polarity
• Easy to un-solder and reuse

Specification:

• The plug body is made of PA engineering materials, the branch-end plug and the PCB-end plug are made of pure gold-plated copper;
• Comply with UL 94 V0 standard, CE/UL certification;
• Rated voltage DC 500V, rated current 15A;
• Working temperature -20℃-120℃, instantaneous current 30A;
• It is recommended to use wire 22AWG-16AWG.

Our XT30U black male/female connectors are widely used in the fields of assisting model aircraft drones, garden tools, smart robots, smart scooters, electric vehicles, energy storage equipment (portable energy storage, mobile energy storage), smart home appliances, etc.

Why Choose Us?
Shenzhen Smart Connection Technology Co., Ltd. was established in 2008, integrating R&D, production, processing and sales of wiring harnesses for various electrical products. We have a professional scientific and technological research and development team, advanced production and inspection equipment, modern enterprise management, and strict quality assurance system. The company's products have passed UL safety certification and are widely used in various electrical products such as portable energy storage power supplies, household energy storage power supplies, industrial and commercial energy storage power supplies, lithium batteries, and industrial control boxes for sweeping robots.

After-sale Service:


• Technical support online service provided.
• OEM available.
• Our product with test report and certification
• Our product with 3 year warranty.

Packing & Delivery:

FAQ:

1. Does it support the customization of wiring harness?

 Yes, customized color and length options are available upon request to meet the needs of different applications.

 2. Does it comply with relevant safety and certification standards?

 Yes, our wiring harnesses comply with industry standards, such as UL, CE, etc., and have passed strict safety certification.

3. How can I get more information on the technical details and customization options for these harnesses?

You can contact our sales team for more detailed information on technical details, customization options and quotations.
