XT30U Male Connector With 16AWG Silicone Wire
XT30U 18 AWG Female Connector
XT30U-F Female Connector

XT30U Female Connector With 16AWG Silicone Wire

XT30U Female Connector recommends using wires 22AWG-16AWG. 16AWG silicone wire is very flexible in connecting to various devices and can be used in portable energy storage and mobile energy storage systems to meet the power transmission needs in different fields. Whether it is a model aircraft or a smart home, the XT30U connector can provide reliable power connection solutions.

  • Item No :

    XT30U-F
  • Payment :

    Advance Payment
  • Product Origin :

    China
  • Color :

    Custom
  • Shipping Port :

    According To Customers Wishes
  • Lead Time :

    15-20 days
  • Price :

    FOB Price

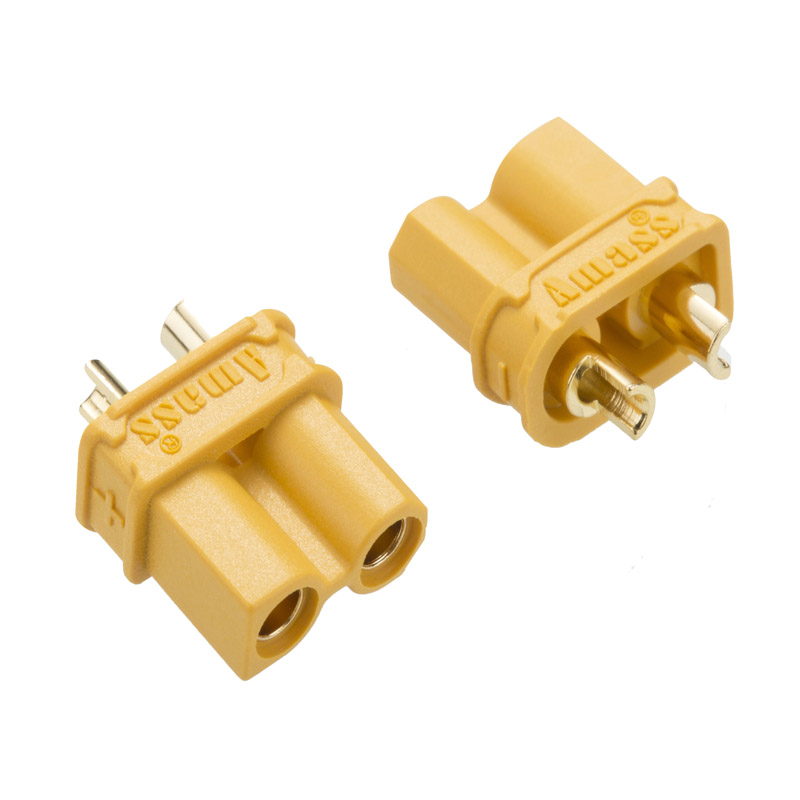

XT30U FemaleConnector With 16AWG Silicone Wire

XT30U Female Connector is a connector product with high-quality specifications. The plug body is made of high-temperature resistant PA engineering material to ensure reliable performance. The branch end and PCB end are made of UL 94 V0 standard PCB material, while the hardware part is made of pure gold-plated copper, which has excellent electrical conductivity. This product has passed CE/UL certification, with a rated voltage of DC 500V, a rated current of 15A, an instantaneous current of up to 30A, and an operating temperature range of -20°C to 120°C. The recommended wire specifications are 22AWG-16AWG to ensure stable and reliable connections with various power sources and equipment.

Our XT30U Female Connector With 16AWG Silicone Wire is suitable for various fields, including model aircraft drones, garden tools, smart robots, smart scooters, electric vehicles, energy storage equipment, smart home appliances, etc.

XT30U Male Connector With 16AWG Silicone Wire

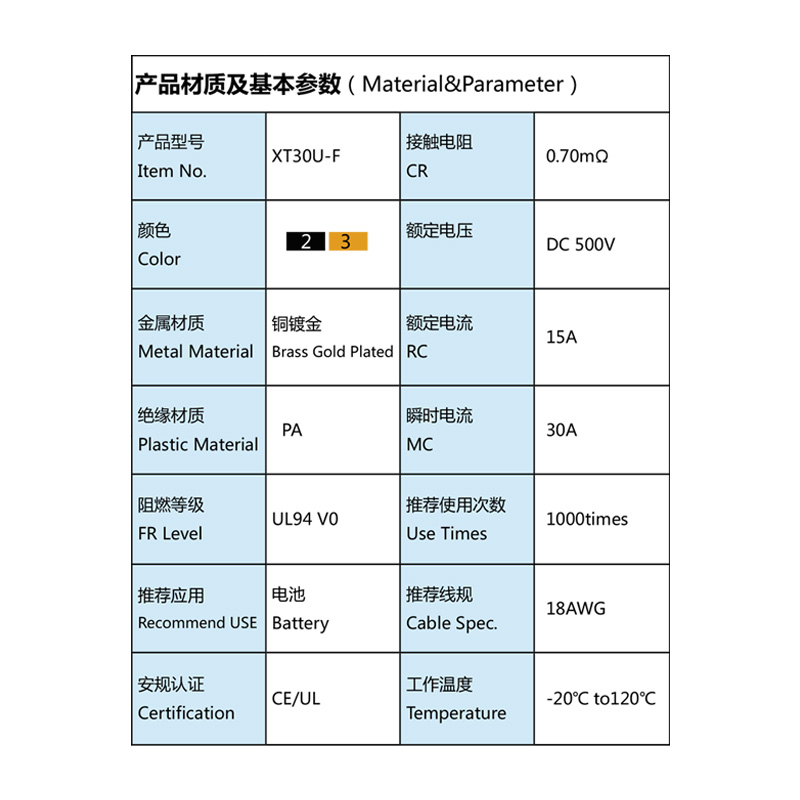

Specification:

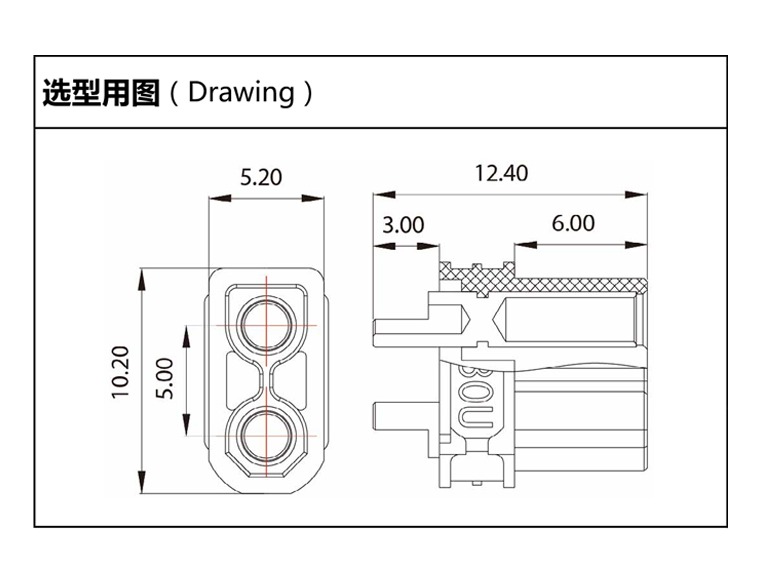

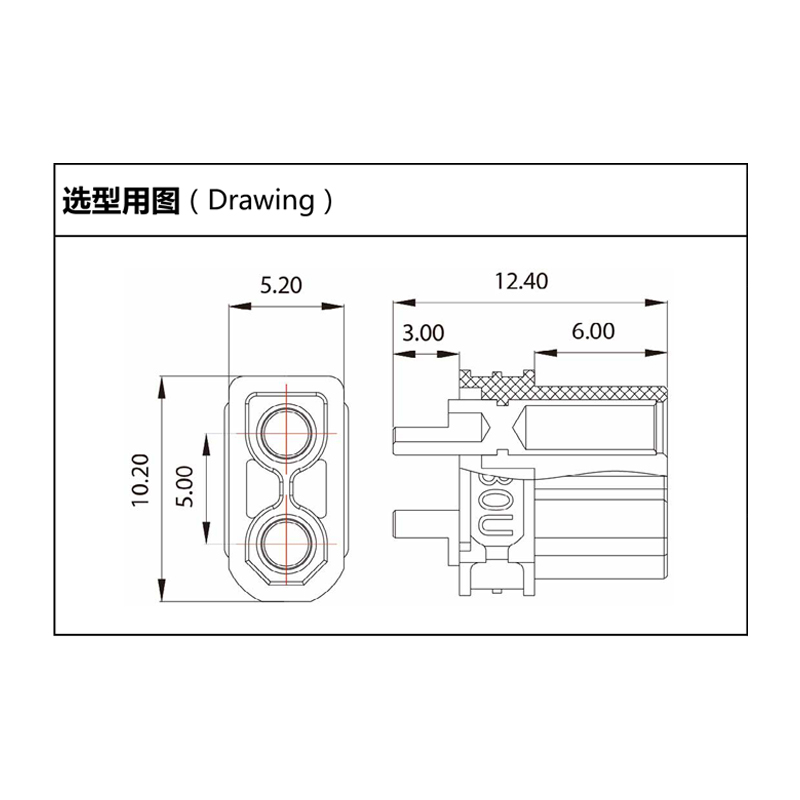

Installation Recommendation:



Why Choose Us?
Shenzhen Smart Connection Technology Co., Ltd. was established in 2008, integrating R&D, production, processing and sales of wiring harnesses for various electrical products. We have a professional scientific and technological research and development team, advanced production and inspection equipment, modern enterprise management, and strict quality assurance system. The company's products have passed UL safety certification and are widely used in various electrical products such as portable energy storage power supplies, household energy storage power supplies, industrial and commercial energy storage power supplies, lithium batteries, and industrial control boxes for sweeping robots.

After-sale Service:


  • Technical support online service provided.
  • OEM available.
  • Our product with test report and certification
  • Our product with 3 year warranty.


Packing & Delivery:





FAQ:

1. Does it support the customization of wiring harness?

 Yes, customized color and length options are available upon request to meet the needs of different applications.



 2. Does it comply with relevant safety and certification standards?

 Yes, our wiring harnesses comply with industry standards, such as UL, CE, etc., and have passed strict safety certification.



3. How can I get more information on the technical details and customization options for these harnesses?

You can contact our sales team for more detailed information on technical details, customization options and quotations.
